Liteon BAD SERIAL DATA with CK3
  Jump to:

Posted Message
mwfail
Newbie
_ 		1. July 2010 @ 14:36 _ Link to this message    Send private message to this user
I have everything working perfectly except for this. I am using jungleflasher 0.1.73/74. I get this error every time I hit the R707 Hole or Solder Joint.




pleasee help.

I have been using this tutorial.
[ + quote]

This message has been edited since posting. Last time this message was edited on 1. July 2010 @ 15:33
Advertisement
_ 		__
eebeejay
AfterDawn Addict
_ 		1. July 2010 @ 15:28 _ Link to this message    Send private message to this user
What's with the ebay link?
[ + quote]
mwfail
Newbie
_ 		1. July 2010 @ 15:32 _ Link to this message    Send private message to this user

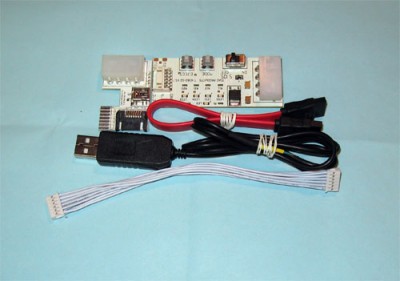

to show what I bought..ill take it off 1 sec and just post the picture
[ + quote]
Modking30
AfterDawn Addict
_ 		1. July 2010 @ 16:11 _ Link to this message    Send private message to this user
you must select the proper com port. Oh and you should be doing a full dump anyway. 7
[ + quote]
mwfail
Newbie
_ 		1. July 2010 @ 16:13 _ Link to this message    Send private message to this user
I am using the correct COM Port (Prolific USB-to-Serial Comm Port).
Im using windows 7, and do I need to use the thing in the top left of the picture above the usb head? And what do u mean full dump?
[ + quote]
Modking30
AfterDawn Addict
_ 		1. July 2010 @ 16:25 _ Link to this message    Send private message to this user
Originally posted by mwfail:
 I am using the correct COM Port (Prolific USB-to-Serial Comm Port).
Im using windows 7, and do I need to use the thing in the top left of the picture above the usb head? And what do u mean full dump?
All lite-on's require a full dump. This means you will need to cut traces and use a vampire for probe II to dump the firmware properly. NOT doing a full dump will not dump your laser calibration. Read full guide here:

http://www.pothsprojects.com/viewtopic.p...re+guide#p11701
[ + quote]
Advertisement
_ 		__

_
infam0us
Senior Member
_ 		1. July 2010 @ 20:22 _ Link to this message    Send private message to this user
did u install the drivers for the usb
[ + quote]
