Caillou burn error
  Jump to:

Posted Message
crazyman1
Junior Member
_
30. October 2006 @ 16:24 _ Link to this message    Send private message to this user
i was wondering if anybody has tryed backing up any of the Caillou kids movies? I have tryed backing them up and it errors out on the burn every time. Here is the burn log

Windows 98 4.10
IA32
WinAspi: File 'Wnaspi32.dll': Ver=1, 0, 0, 0, size=36864 bytes, created 4/23/99 10:22:00 PM
ahead WinASPI: File 'C:\Program Files\Ahead\Nero\Wnaspi32.dll': Ver=2.0.1.74, size=164112 bytes, created 10/26/04 6:35:34 PM
Nero API version: 6.6.0.18
Using interface version: 6.3.1.4
Installed in: C:\Program Files\Ahead\Nero\
Application: ahead\Nero - Burning Rom
Internal Version: 6, 6, 0, 18e

Recorder: <LITE-ON DVDRW SOHW-1613S>Version: AS06 - HA 1 TA 1 - 6.6.0.18
Adapter driver: <intelata> HA 1
Drive buffer : 2048kB
Bus Type : default (0) -> ATAPI, detected: ATAPI
TOSHIBA DVD-ROM SD-M1212 (Target 0, F:): Autoinsert Off, DMA On, Disconnect Off, SyncDataXfer Off
LITE-ON DVDRW SOHW-1613S (Target 1, G:): Autoinsert Off, DMA On, Disconnect Off, SyncDataXfer Off
Excluded drive IDs:
WriteBufferSize: 56623104 (0) Byte
ShowDrvBufStat : 0
BUFE : 0
Physical memory : 375MB (384464kB)
Free physical memory: 36MB (37020kB)
Memory in use : 56 %
Uncached PFiles: 0x0
Use Inquiry : 1
Global Bus Type: default (0)
Check supported media : Disabled (0)

28.10.2006
NeroAPI
10:28:36 PM #1 Phase 112 File APIProgress.cpp, Line 276
DVD-Video files reallocation started

10:28:36 PM #2 Phase 114 File APIProgress.cpp, Line 276
DVD-Video files reallocation completed (no file modified)

10:28:36 PM #3 Phase 111 File APIProgress.cpp, Line 276
DVD-Video files sorted

10:28:36 PM #4 Text 0 File Reader.cpp, Line 127
Reader running

10:28:36 PM #5 Text 0 File Writer.cpp, Line 122
Writer LITE-ON DVDRW SOHW-1613S running

10:28:36 PM #6 Text 0 File AudioCompilationImpl.cpp, Line 842
DRM: StartDrmRecording(RealRec:1, ImageRec:0, Copies:1)
DRM: Beginning burn process.

10:28:36 PM #7 ISO9660GEN -11 File geniso.cpp, Line 3309
First writeable address = 0 (0x00000000)

10:28:36 PM #8 ISO9660GEN -11 File geniso.cpp, Line 3309
First writeable address = 0 (0x00000000)

10:28:36 PM #9 Text 0 File Burncd.cpp, Line 3233
Turn on Disc-At-Once, using DVD media

10:30:36 PM #10 Text 0 File DlgWaitCD.cpp, Line 270
Last possible write address on media: 2298495 (510:46.45, 4489MB)
Last address to be written: 1878447 (417:25.72, 3668MB)

10:30:36 PM #11 Text 0 File DlgWaitCD.cpp, Line 282
Write in overburning mode: NO

10:30:36 PM #12 Text 0 File DlgWaitCD.cpp, Line 2483
Recorder: LITE-ON DVDRW SOHW-1613S, Media type: DVD-R
Disc Manufacturer: TYG01 -
Disc Application Code: 64, Disc Physical Code: 193

10:30:36 PM #13 Text 0 File DlgWaitCD.cpp, Line 448
>>> Protocol of DlgWaitCD activities: <<<
=========================================
Insert empty disc to write to.
(Medium in drive: unknown. Medium required by compilation: DVD+R/RW, DVD-R/RW.)

10:30:36 PM #14 Text 0 File ThreadedTransferInterface.cpp, Line 838
Setup items (after recorder preparation)
0: TRM_DATA_MODE1 ()
2 indices, index0 (150) not provided
original disc pos #0 + 1878448 (1878448) = #1878448/417:25.73
relocatable, disc pos for caching/writing not required/ required, no patch infos
-> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 1878448 blocks [LITE-ON DVDRW SOHW-1613S]
--------------------------------------------------------------

10:30:36 PM #15 Text 0 File ThreadedTransferInterface.cpp, Line 1051
Prepare recorder [LITE-ON DVDRW SOHW-1613S] for write in CUE-sheet-DAO
DAO infos:
==========
MCN: ""
TOCType: 0x00; Session Closed, disc fixated
Tracks 1 to 1:
1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 3847061504, ISRC ""
DAO layout:
===========
__Start_|____Track_|_Idx_|_CtrlAdr_|_RecDep__________
0 | lead-in | 0 | 0x41 | 0x00
0 | 1 | 0 | 0x41 | 0x00
0 | 1 | 1 | 0x41 | 0x00
1878448 | lead-out | 1 | 0x41 | 0x00

10:30:36 PM #16 Phase 24 File APIProgress.cpp, Line 276
Caching of files started

10:30:36 PM #17 Text 0 File Burncd.cpp, Line 4122
Cache writing successful.

10:30:36 PM #18 Phase 25 File APIProgress.cpp, Line 276
Caching of files completed

10:30:36 PM #19 Phase 36 File APIProgress.cpp, Line 276
Burn process started at 4x (5,540 KB/s)

10:30:36 PM #20 Text 0 File ThreadedTransferInterface.cpp, Line 2661
Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

10:30:36 PM #21 Text 0 File DVDR.cpp, Line 2571
Recording mode: Sequential Recording Mode

10:30:36 PM #22 Text 0 File Mmc.cpp, Line 21774
Set BUFE: Buffer underrun protection -> ON , SMART-BURN : ON

10:30:36 PM #23 Text 0 File DVDR.cpp, Line 2726
Start write address at LBA 0
DVD high compatibility mode: Yes

10:30:36 PM #24 Text 0 File Cdrdrv.cpp, Line 8892
---- DVD Structure: Physical Format Information (00h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 0.0 (0)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 0 h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Start sector number of the current Border-Out: 0 h
Start sector number of the next Border-In: 0 h
Media Specific [16..63]:
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

10:31:23 PM #25 Text 0 File Cdrdrv.cpp, Line 1288
22:31:23.700 - LITE-ON DVDRW SOHW-1613S\H1 T1 : Queue again later

10:31:32 PM #26 SCSI -400 File Cdrdrv.cpp, Line 1436
SCSI Exec, HA 1, TA 1, LUN 0, buffer 0x05B50A00
Status: 0x04 (0x01, SCSI_ERR)
HA-Status 0x00 (0x00, OK)
TA-Status 0x02 (0x01, SCSI_TASTATUS_CHKCOND)
Sense Key: 0x00 (KEY_NO_SENSE)
Sense Code: 0x00
Sense Qual: 0x00
CDB Data: 0x5C 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x0C 0x00 0x00 0x00
Sense Data: 0x70 0x00 0x00 0x00 0x00 0x00 0x00 0x0A
0x00 0x00 0x00 0x00 0x00 0x00

10:31:32 PM #27 Text 0 File Cdrdrv.cpp, Line 1288
22:31:32.160 - LITE-ON DVDRW SOHW-1613S\H1 T1 : Queue again later

10:31:38 PM #28 SCSI -400 File Cdrdrv.cpp, Line 1436
SCSI Exec, HA 1, TA 1, LUN 0, buffer 0x03410000
Status: 0x04 (0x01, SCSI_ERR)
HA-Status 0x00 (0x00, OK)
TA-Status 0x02 (0x01, SCSI_TASTATUS_CHKCOND)
Sense Key: 0x00 (KEY_NO_SENSE)
Sense Code: 0x00
Sense Qual: 0x00
CDB Data: 0x2A 0x00 0x00 0x00 0x00 0x20 0x00 0x00 0x20 0x00 0x00 0x00
Sense Data: 0x70 0x00 0x00 0x00 0x00 0x00 0x00 0x0A
0x00 0x00 0x00 0x00 0x00 0x00

10:31:38 PM #29 CDR -400 File Writer.cpp, Line 311
Unspecified target error
LITE-ON DVDRW SOHW-1613S\H1 T1

10:31:38 PM #30 Text 0 File ThreadedTransfer.cpp, Line 228
all writers idle, stopping conversion

10:31:38 PM #31 Text 0 File ThreadedTransfer.cpp, Line 222
conversion idle, stopping reader

10:31:38 PM #32 Text 0 File DVDR.cpp, Line 2969
EndDAO: Last written address was 31

10:35:06 PM #33 Phase 38 File APIProgress.cpp, Line 276
Burn process failed at 4x (5,540 KB/s)

10:35:06 PM #34 Text 0 File AudioCompilationImpl.cpp, Line 867
DRM: DRM burn session terminated.

10:35:06 PM #35 Text 0 File AudioCompilationImpl.cpp, Line 896
DRM: Closing entire DRM handling. Bye.


Existing drivers:
File 'IoSubSys\SCSI1HLP.VXD': Ver=4.10.1998, size=19270 bytes, created 4/23/99 10:22:00 PM
File 'IoSubsys\NEROCD95.VXD': Ver=4.5.0.14, size=39882 bytes, created 3/11/02 11:55:38 AM
File 'IoSubsys\CDFS.VXD': Ver=4.10.1998, size=59133 bytes, created 4/23/99 10:22:00 PM
File 'IoSubsys\ESDI_506.PDR': Ver=4.10.2225, size=24430 bytes, created 2/2/00 5:46:04 PM
File 'IoSubsys\AFL.VXD': Ver=5.15, size=17052 bytes, created 10/31/01 9:13:54 AM
File '..\System32\Drivers\1394bus.sys': Ver=4.10.2224, size=38016 bytes, created 10/11/99 4:57:18 PM
File '..\System32\Drivers\Ohci1394.sys': Ver=4.10.2226, size=36720 bytes, created 6/28/00 1:11:28 PM
File '..\System32\Drivers\Ntmap.sys': Ver=4.10.2227, size=8816 bytes, created 6/28/00 1:18:44 PM
File 'IoSubsys\Ntmaphlp.pdr': Ver=4.10.2223, size=9849 bytes, created 10/12/99 2:56:42 PM
File '..\System32\Drivers\Sbp2port.sys': Ver=4.10.2226, size=36352 bytes, created 6/28/00 1:11:58 PM
File '..\System\Vmm32\Ios.vxd': Ver=4.10.2223, size=69594 bytes, created 10/12/99 3:02:40 PM
File 'IoSubsys\Disktsd.vxd': Ver=4.10.2223, size=18889 bytes, created 11/17/99 5:36:48 PM

Registry Keys:
Advertisement
_
__
Moderator
_
30. October 2006 @ 17:02 _ Link to this message    Send private message to this user
Hey there crazyman1
File 'IoSubsys\NEROCD95.VXD':
Looks like you have an old version of Nero's InCD still on the pc - Check add/remove programs for it. Unisntall it and run the InCD Clean Tool
Unspecified target error If InCd is still there might be causing this error.
Check this too - In SmartStart go to ToolKit>InfoTool>ASPI tab - see if anything shows as corrupted in there.

Trying burning this video_ts folder w/ a free program ImgBurn. You would use the build mode since you would be burning the video_ts folder Shrink saved to your hard. Here's a guide too:
http://forums.afterdawn.com/thread_view.cfm/383878

Give that a go and see how that goes.

edit to add: may want to try a registry cleaner (if not using one)like ccleaner Supports your os - Windows 98 - but I have never used on that OS.
Do a disc cleanup and disc defrag too.



Forum Rules
Do this before posting
Do not click this link...

This message has been edited since posting. Last time this message was edited on 30. October 2006 @ 17:09

crazyman1
Junior Member
_
30. October 2006 @ 17:12 _ Link to this message    Send private message to this user
ok you just lost me lol
so i go to add/remove programs and look for Nero's InCD and remove it?
I take it I dont want incd on my computer?
Please let me know before i delete the wrong thing.
thanks again.
crazyman1
Junior Member
_
30. October 2006 @ 17:16 _ Link to this message    Send private message to this user
what do you mean by In SmartStart go to ToolKit>InfoTool>ASPI tab
what and where is smartstart?
Moderator
_
30. October 2006 @ 17:31 _ Link to this message    Send private message to this user
Sorry there crazyman1

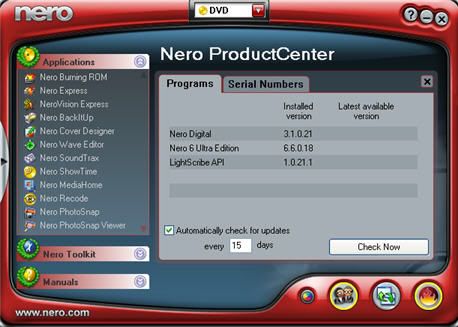

SmartStart is Nero's like command center. You access all the different apps thru it. Usually a desktop icon.

Yes look in add or remove programs for InCD. If you see it - uninstall it. It's Nero's packet writing software that can cause problems.



Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
30. October 2006 @ 17:38 _ Link to this message    Send private message to this user
i went into add or remove programs and DID NOT see incd in there.
i ran InCD Clean Tool and it found some stuff that must of been left behind when ever incd was UNinstalled.
now im off to see if i can find SmartStart.
Be back in a few. lol
Moderator
_
30. October 2006 @ 17:49 _ Link to this message    Send private message to this user
Ok try some of there other suggestions too - it sounds like your pc may need a bit of cleaning up.



Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
30. October 2006 @ 17:59 _ Link to this message    Send private message to this user
whos other suggestions?
i finley found smart start and went to toolkit>infotool>aspi tab and it says aspi is installed and working properley.
Moderator
_
30. October 2006 @ 18:08 _ Link to this message    Send private message to this user
Mine :) See above. Trying to rule out any conflicts. I'd hate to say it's the drive then you stick a new one in there and same thing happens.

You're good on the aspi too.



Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
30. October 2006 @ 19:04 _ Link to this message    Send private message to this user
i'm going to run ccleaner then i'm going to do a disc cleanup and disc defrag. then i will start this movie over from scratc and see what happens.
if it still does the same thing do you think it could be my burner going south?
Moderator
_
30. October 2006 @ 19:22 _ Link to this message    Send private message to this user
Maybe - but let's clean things up a bit. Run a antivirus and spyware scan too.
Since I'm not that familiar w/ 98 another suggestion is to look up some of these conflicting drivers in the Nero log and see if they may be leftovers from an uninstall of some software.
File 'IoSubSys\SCSI1HLP.VXD':
File 'IoSubsys\CDFS.VXD':
File 'IoSubsys\ESDI_506.PDR':
File 'IoSubsys\AFL.VXD':

I could be way off base on these but I'll try & do a google and see what I can find on them. Won't be til tomm though. In the meantime you can try and find them and see if something rings a bell - software wise.
But 1st do the other steps and try the burn again - fails - post the logs and we'll see what's left.




Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
30. October 2006 @ 19:35 _ Link to this message    Send private message to this user
i will do the other things first. if you find out anything about the files please let me know.
i even thought about puting another hd in and doing a fresh install of the operating system and just the software i need and see what happens then.
thanks for all your help on this.
Moderator
_
30. October 2006 @ 19:44 _ Link to this message    Send private message to this user
That's not a idea bad at all. Even if it does turn out to be the drive it still may be a good idea. One way to get a clean o/s and hard drive :) (which might be best anyhow - depending on what shape this pc is in) Cheaper than a new pc. You use this one just for burning if I remember right?

I'll see what I can find and let you know.



Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
31. October 2006 @ 05:57 _ Link to this message    Send private message to this user
yes this is the stand alone pc just for burning and it works great. I just need to upgrade the memory a little as you can see.
If i start over i dont have the serial number for Nero so what would i do to reinstall it? i up dated it from that link you gave me when i first posted on here.
Moderator
_
31. October 2006 @ 14:54 _ Link to this message    Send private message to this user
Hey crazyman1
The serial # will also be in SmartStart - Product center (see pic below)
In the right hand corner of SmartStart click on the icon w/ a flame in then the serial # tab.
Yeah more memory would be good. One weird thing about the Nero log is it's report 56% in use - wrong it's actually 90% in use.

I checked out those drivers and yep I was off base - except the Nero one they are all devices,network driver etc for 98.

How did you make out burning again after doing the maintenance bit?

If failed - try ImgBurn. If that fails then may be time for a new drive.






Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
31. October 2006 @ 19:08 _ Link to this message    Send private message to this user
so the drives are all good then?
i have not tryed another burn yet i just got home frm trick a treating with my 5yr old son. will try hopefully tomorrow.
i'm going to try to pick up a 256 soon and see what that does.
Moderator
_
1. November 2006 @ 13:34 _ Link to this message    Send private message to this user
The drivers in the log all look okay - w 98's drivers.
Do the maintenance bit and try again. Keep as much free memory available as possible.
If it is the drive going adding ram w/ help overall but won't help the burn failure.
Try ImgBurn to burn also - lessen the possibilities.



Forum Rules
Do this before posting
Do not click this link...
crazyman1
Junior Member
_
1. November 2006 @ 19:41 _ Link to this message    Send private message to this user
i tryed burning this movie again after i did everything we talked about and here is the new burn error log.

Windows 98 4.10
IA32
WinAspi: File 'Wnaspi32.dll': Ver=1, 0, 0, 0, size=36864 bytes, created 4/23/99 10:22:00 PM
ahead WinASPI: File 'C:\Program Files\Ahead\Nero\Wnaspi32.dll': Ver=2.0.1.74, size=164112 bytes, created 10/26/04 6:35:34 PM
Nero API version: 6.6.0.18
Using interface version: 6.3.1.4
Installed in: C:\Program Files\Ahead\Nero\
Application: ahead\Nero - Burning Rom
Internal Version: 6, 6, 0, 18e

Recorder: <LITE-ON DVDRW SOHW-1613S>Version: AS06 - HA 1 TA 1 - 6.6.0.18
Adapter driver: <intelata> HA 1
Drive buffer : 2048kB
Bus Type : default (0) -> ATAPI, detected: ATAPI
TOSHIBA DVD-ROM SD-M1212 (Target 0, F:): Autoinsert Off, DMA On, Disconnect Off, SyncDataXfer Off
LITE-ON DVDRW SOHW-1613S (Target 1, G:): Autoinsert Off, DMA On, Disconnect Off, SyncDataXfer Off
Excluded drive IDs:
WriteBufferSize: 56623104 (0) Byte
ShowDrvBufStat : 0
BUFE : 0
Physical memory : 375MB (384464kB)
Free physical memory: 63MB (65116kB)
Memory in use : 51 %
Uncached PFiles: 0x0
Use Inquiry : 1
Global Bus Type: default (0)
Check supported media : Disabled (0)

31.10.2006
NeroAPI
9:39:02 PM #1 Phase 112 File APIProgress.cpp, Line 276
DVD-Video files reallocation started

9:39:02 PM #2 Phase 114 File APIProgress.cpp, Line 276
DVD-Video files reallocation completed (no file modified)

9:39:02 PM #3 Phase 111 File APIProgress.cpp, Line 276
DVD-Video files sorted

9:39:03 PM #4 Text 0 File Reader.cpp, Line 127
Reader running

9:39:03 PM #5 Text 0 File Writer.cpp, Line 122
Writer LITE-ON DVDRW SOHW-1613S running

9:39:03 PM #6 Text 0 File AudioCompilationImpl.cpp, Line 842
DRM: StartDrmRecording(RealRec:1, ImageRec:0, Copies:1)
DRM: Beginning burn process.

9:39:03 PM #7 ISO9660GEN -11 File geniso.cpp, Line 3309
First writeable address = 0 (0x00000000)

9:39:03 PM #8 ISO9660GEN -11 File geniso.cpp, Line 3309
First writeable address = 0 (0x00000000)

9:39:03 PM #9 Text 0 File Burncd.cpp, Line 3233
Turn on Disc-At-Once, using DVD media

9:39:03 PM #10 Text 0 File DlgWaitCD.cpp, Line 270
Last possible write address on media: 2298495 (510:46.45, 4489MB)
Last address to be written: 1995903 (443:32.03, 3898MB)

9:39:03 PM #11 Text 0 File DlgWaitCD.cpp, Line 282
Write in overburning mode: NO

9:39:04 PM #12 Text 0 File DlgWaitCD.cpp, Line 2483
Recorder: LITE-ON DVDRW SOHW-1613S, Media type: DVD-R
Disc Manufacturer: TYG01 -
Disc Application Code: 64, Disc Physical Code: 193

9:39:04 PM #13 Text 0 File DlgWaitCD.cpp, Line 448
>>> Protocol of DlgWaitCD activities: <<<
=========================================

9:39:04 PM #14 Text 0 File ThreadedTransferInterface.cpp, Line 838
Setup items (after recorder preparation)
0: TRM_DATA_MODE1 ()
2 indices, index0 (150) not provided
original disc pos #0 + 1995904 (1995904) = #1995904/443:32.4
relocatable, disc pos for caching/writing not required/ required, no patch infos
-> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 1995904 blocks [LITE-ON DVDRW SOHW-1613S]
--------------------------------------------------------------

9:39:04 PM #15 Text 0 File ThreadedTransferInterface.cpp, Line 1051
Prepare recorder [LITE-ON DVDRW SOHW-1613S] for write in CUE-sheet-DAO
DAO infos:
==========
MCN: ""
TOCType: 0x00; Session Closed, disc fixated
Tracks 1 to 1:
1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 4087611392, ISRC ""
DAO layout:
===========
__Start_|____Track_|_Idx_|_CtrlAdr_|_RecDep__________
0 | lead-in | 0 | 0x41 | 0x00
0 | 1 | 0 | 0x41 | 0x00
0 | 1 | 1 | 0x41 | 0x00
1995904 | lead-out | 1 | 0x41 | 0x00

9:39:04 PM #16 Phase 24 File APIProgress.cpp, Line 276
Caching of files started

9:39:04 PM #17 Text 0 File Burncd.cpp, Line 4122
Cache writing successful.

9:39:04 PM #18 Phase 25 File APIProgress.cpp, Line 276
Caching of files completed

9:39:04 PM #19 Phase 36 File APIProgress.cpp, Line 276
Burn process started at 4x (5,540 KB/s)

9:39:04 PM #20 Text 0 File ThreadedTransferInterface.cpp, Line 2661
Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

9:39:04 PM #21 Text 0 File DVDR.cpp, Line 2571
Recording mode: Sequential Recording Mode

9:39:04 PM #22 Text 0 File Mmc.cpp, Line 21774
Set BUFE: Buffer underrun protection -> ON , SMART-BURN : ON

9:39:04 PM #23 Text 0 File DVDR.cpp, Line 2726
Start write address at LBA 0
DVD high compatibility mode: Yes

9:39:04 PM #24 Text 0 File Cdrdrv.cpp, Line 8892
---- DVD Structure: Physical Format Information (00h) ----
Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 0.0 (0)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 0 h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Start sector number of the current Border-Out: 0 h
Start sector number of the next Border-In: 0 h
Media Specific [16..63]:
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

9:39:42 PM #25 Text 0 File Cdrdrv.cpp, Line 1288
21:39:42.000 - LITE-ON DVDRW SOHW-1613S\H1 T1 : Queue again later

9:40:07 PM #26 SCSI -400 File Cdrdrv.cpp, Line 1436
SCSI Exec, HA 1, TA 1, LUN 0, buffer 0x03310000
Status: 0x04 (0x01, SCSI_ERR)
HA-Status 0x00 (0x00, OK)
TA-Status 0x02 (0x01, SCSI_TASTATUS_CHKCOND)
Sense Key: 0x00 (KEY_NO_SENSE)
Sense Code: 0x00
Sense Qual: 0x00
CDB Data: 0x2A 0x00 0x00 0x00 0x08 0xA0 0x00 0x00 0x20 0x00 0x00 0x00
Sense Data: 0x70 0x00 0x00 0x00 0x00 0x00 0x00 0x0A
0x00 0x00 0x00 0x00 0x00 0x00

9:40:07 PM #27 CDR -400 File Writer.cpp, Line 311
Unspecified target error
LITE-ON DVDRW SOHW-1613S\H1 T1

9:40:07 PM #28 Text 0 File ThreadedTransfer.cpp, Line 228
all writers idle, stopping conversion

9:40:07 PM #29 Text 0 File ThreadedTransfer.cpp, Line 222
conversion idle, stopping reader

9:40:07 PM #30 Text 0 File DVDR.cpp, Line 2969
EndDAO: Last written address was 2207

9:43:27 PM #31 Phase 38 File APIProgress.cpp, Line 276
Burn process failed at 4x (5,540 KB/s)

9:43:27 PM #32 Text 0 File AudioCompilationImpl.cpp, Line 867
DRM: DRM burn session terminated.

9:43:27 PM #33 Text 0 File AudioCompilationImpl.cpp, Line 896
DRM: Closing entire DRM handling. Bye.


Existing drivers:
File 'IoSubSys\SCSI1HLP.VXD': Ver=4.10.1998, size=19270 bytes, created 4/23/99 10:22:00 PM
File 'IoSubsys\NEROCD95.VXD': Ver=4.5.0.14, size=39882 bytes, created 3/11/02 11:55:38 AM
File 'IoSubsys\CDFS.VXD': Ver=4.10.1998, size=59133 bytes, created 4/23/99 10:22:00 PM
File 'IoSubsys\ESDI_506.PDR': Ver=4.10.2225, size=24430 bytes, created 2/2/00 5:46:04 PM
File 'IoSubsys\AFL.VXD': Ver=5.15, size=17052 bytes, created 10/31/01 9:13:54 AM
File '..\System32\Drivers\1394bus.sys': Ver=4.10.2224, size=38016 bytes, created 10/11/99 4:57:18 PM
File '..\System32\Drivers\Ohci1394.sys': Ver=4.10.2226, size=36720 bytes, created 6/28/00 1:11:28 PM
File '..\System32\Drivers\Ntmap.sys': Ver=4.10.2227, size=8816 bytes, created 6/28/00 1:18:44 PM
File 'IoSubsys\Ntmaphlp.pdr': Ver=4.10.2223, size=9849 bytes, created 10/12/99 2:56:42 PM
File '..\System32\Drivers\Sbp2port.sys': Ver=4.10.2226, size=36352 bytes, created 6/28/00 1:11:58 PM
File '..\System\Vmm32\Ios.vxd': Ver=4.10.2223, size=69594 bytes, created 10/12/99 3:02:40 PM
File 'IoSubsys\Disktsd.vxd': Ver=4.10.2223, size=18889 bytes, created 11/17/99 5:36:48 PM

Registry Keys:
Moderator
_
2. November 2006 @ 13:30 _ Link to this message    Send private message to this user
Damn another fail - oh well at least the pc got a cleaning and some maintenance :)
Nothing changed in the log.

I think you should try ImgBurn too - last step - then get a new burner and cable. You can take video_ts folder from Shrink and use the build mode.
Keep us posted!
crazyman1
Junior Member
_
2. November 2006 @ 16:35 _ Link to this message    Send private message to this user
GOOD NEWS
I tryed to back up another dvd and it turned out great. SO its somthing about this movie. ATLEAST its not my burner or media thats bad.
Advertisement
_
__

_
Moderator
_
2. November 2006 @ 16:53 _ Link to this message    Send private message to this user
Good deal crazyman1
Give ImgBurn a shot at burning Caillou.



Forum Rules
Do this before posting
Do not click this link...
afterdawn.com > forums > software specific discussion > dvd shrink forum > caillou burn error


Digital video: AfterDawn.com | AfterDawn Forums
Music: MP3Lizard.com
Gaming: Blasteroids.com | Blasteroids Forums | Compare game prices
Software: Software downloads
Blogs: User profile pages
RSS feeds: AfterDawn.com News | Software updates | AfterDawn Forums
International: AfterDawn in Finnish | AfterDawn in Swedish | AfterDawn in Norwegian | download.fi
Navigate: Search | Site map
About us: About AfterDawn Ltd | Advertise on our sites | Rules, Restrictions, Legal disclaimer & Privacy policy
Contact us: Send feedback | Contact our media sales team

  © 1999-2025 by AfterDawn Ltd.

  IDG TechNetwork
