Hitachi Connection
|
|
|
jontracey
Suspended due to non-functional email address
|
30. April 2007 @ 11:48 |
Link to this message
|
|
I've been having trouble deciding what to purchase. I am going to buy some croc clips and Verbatium DVD+DL's for sure.I will buy a SATA cable unless it comes with a SATA card I will buy. Now I'm having trouble with two things I need to buy, a SATA card and the connectivity kit.
My DVD drive is a Hitachi. I have PCI ports on my computer. I was wondering, what is the best SATA card to buy for the flashing of the drive?
Is the connectivity kit worth buying? Does it ensure no fatal error?
Thanks for the help.
Jonathan Tracey
|
|
Advertisement
|
 |
|
|
|
immy_2k
Member
|
30. April 2007 @ 11:52 |
Link to this message
|
|
if u have a hitachi drive not the dreaded 0078k i think it is but any other such as 47 59d then u can buy the x360 usb adapter far less hassle and it works no need for crocodile clips just take out ur drive from ur xbox and leave the rest of the xbox in ur bedroom u only need the drive it is a very simple set up it come with connectivity kit v2 so u can get ur drive into mode b
immy
|
|
theridges
Suspended due to non-functional email address
|
30. April 2007 @ 11:59 |
Link to this message
|
|
|
jontracey
Suspended due to non-functional email address
|
30. April 2007 @ 13:01 |
Link to this message
|
|
Thanks for the info. Just to bring up another topic, I heard the cross-wire method is easy. When I looked up the tutorial, it looked very complicated. Is it easy but needs to be explained better? Is it worth a shot? What's your opinion?
Jonathan Tracey
|
|
jontracey
Suspended due to non-functional email address
|
30. April 2007 @ 13:07 |
Link to this message
|
Also, going back to the USB Adaptor, does this allow you to flash your drive from your computer without a SATA card? How do you connect it to your computer using the connectivity kit?
I'm trying to post an image. I hope it works.
Jonathan Tracey
|
|
theridges
Suspended due to non-functional email address
|
30. April 2007 @ 18:09 |
Link to this message
|
yes the 360usb lets you flash the hitachi 46,47 and 59 without using a Sata Cable....

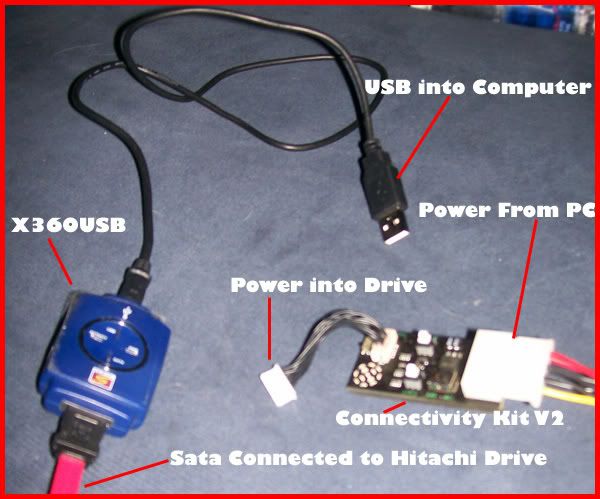

here is a pic i took and labled
This message has been edited since posting. Last time this message was edited on 30. April 2007 @ 18:09
|
|
immy_2k
Member
|
1. May 2007 @ 10:37 |
Link to this message
|
|
basically it a simple procedure
open up ur xbox 360 and disconnect the two plugs in the bak of the hitachi drive and take the drive out and leave ur xbox where u want lol as u wont need it only the hitachi drive
now the connectivity kit goes onto the back of the hitachi drive u just stick it on u can take it off later now u will get all the bits and bobs with but basicall its a plug from the connectivity kit that goes into the back of the hitachi drive and thats it and ur x360usb has a sata cable coming out of it and that goes into the hitchi drive and the usb wire into any usb slot u have free on ur comp
connectivity kit just to get drive into mode b and x360 means u wont need to have any sata card on ur comp just plug it into ur usb slot on ur comp and thats it
immy
|
|
immy_2k
Member
|
1. May 2007 @ 10:41 |
Link to this message
|
|
oops i did miss the molex connector which the ridges has a good diagram of
now the molex connector is just a spare power supply in ur pc just pop off the side case to ur pc and u shuld have one free its just basically the same power supply plug u wuld put into any new drive u might want to add to ur desktop thats it
i might have confused u but trust me its really easy and if u nned help theirs great tutorials on here and me too and others that will help u
immy
|
|
immy_2k
Member
|
1. May 2007 @ 10:43 |
Link to this message
|
|
basically the only thing coming out of ur comp is the molex connector and nothing else and the only thing u connecting to ur computer is the usb wire coming out of the x360usb adapter and thats
immy
|
|
jontracey
Suspended due to non-functional email address
|
1. May 2007 @ 10:44 |
Link to this message
|
|
I do not understand. Is the "power into drive" connected with the connectivity kit when you buy it. Where do you get the "power from pc"? Where is that in your computer's hard drive?
Jonathan Tracey
|
|
immy_2k
Member
|
1. May 2007 @ 10:44 |
Link to this message
|
|
thats a real good pic ridge shows how easy it really is
and when connecting up the connectivity kit just be careful to get all the plugs in the right way i mean u only have to look at em to know what goes in where and which way
all u need to flash a hitachi drive well the ones mentioned earlier is patience and a lil bit of common sense and u can do it
immy
|
|
theridges
Suspended due to non-functional email address
|
1. May 2007 @ 12:05 |
Link to this message
|
Originally posted by jontracey:
I do not understand. Is the "power into drive" connected with the connectivity kit when you buy it. Where do you get the "power from pc"? Where is that in your computer's hard drive?
the power into drive plug goes into the back of your hitachi to give the drive power,and yes it comes with the connectivity kit..everything in the picture comes with the connectivity kit except the molex power which comes from the PC :)
and the power from PC come from inside of your pc just pop open the side and im sure you have extra Molex Connectors :)

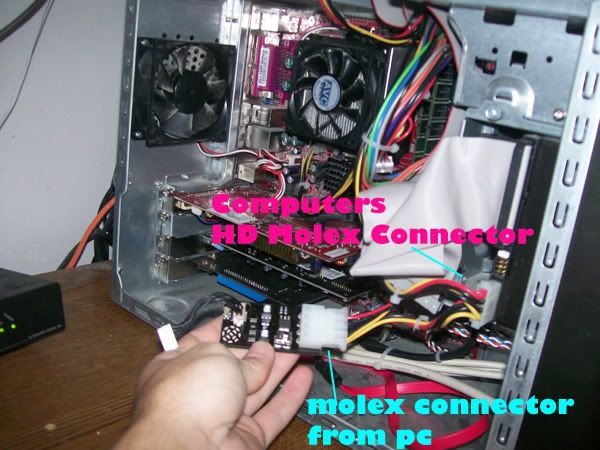

Pic from my pc(dont mind that Sata Cable its in there for when i flash Sammy Drives)
This message has been edited since posting. Last time this message was edited on 1. May 2007 @ 12:13
|
|
jontracey
Suspended due to non-functional email address
|
2. May 2007 @ 05:27 |
Link to this message
|
|
I got all the info I need. I'll see if it works.
Thanks
Jonathan Tracey
|
|
theridges
Suspended due to non-functional email address
|
2. May 2007 @ 09:57 |
Link to this message
|
|
if you need anything else just ask....
|
|
jontracey
Suspended due to non-functional email address
|
6. May 2007 @ 07:39 |
Link to this message
|
|
I've just came up with a new question. Will this flash allow you to read all back ups of all games?
Jonathan Tracey
|
|
theridges
Suspended due to non-functional email address
|
6. May 2007 @ 10:35 |
Link to this message
|
|
only xbox 360/xbox 1 games and the xbox 1 games have to be burned to dual layer disc's...
|
|
monkijin
Member
|
6. May 2007 @ 11:22 |
Link to this message
|
|
360 USB AND GARYOPA FIRMWARE IS WELL WORTH IT DONE MINE YESTERDAY AND WELL WORTH THE MONEY SPENT.
WENT OT PC WORLD TO BUY SOME DUAL LAYER DISCS SPENT WELL OVER THE ODDS TO BUY BUT THE BACKUPS WORK FLAWLESS AND I FEEL WELL CHUFFED.
normally pissed off
|
|
jontracey
Suspended due to non-functional email address
|
13. May 2007 @ 06:44 |
Link to this message
|
|
Back to buying the usb adapter. Do you know a place that sells it but also accepts paypal?
Jonathan Tracey
|
|
monkijin
Member
|
13. May 2007 @ 08:39 |
Link to this message
|
Originally posted by jontracey:
Back to buying the usb adapter. Do you know a place that sells it but also accepts paypal?
i got mine from fleebay but if you are in the uk then pm me i may be able to help you.
..........dave
normally pissed off
|
|
jontracey
Suspended due to non-functional email address
|
19. May 2007 @ 15:00 |
Link to this message
|
|
fleebay???
Don't you mean Ebay?
fleebay is not a site.
Jonathan Tracey
|
|
jontracey
Suspended due to non-functional email address
|
19. May 2007 @ 15:01 |
Link to this message
|
|
Any other places?
Jonathan Tracey
|
|
jontracey
Suspended due to non-functional email address
|
27. May 2007 @ 06:54 |
Link to this message
|
|
I purchased one. What programs, firmware, files do I need to flash this? Where do I download them from.
Jonathan Tracey
|
|
jontracey
Suspended due to non-functional email address
|
1. June 2007 @ 14:21 |
Link to this message
|
|
What happens if your drive is not recognized by windows? It has a red led. Everythings connected. What do I do?
Jonathan Tracey
|
|
fgamer
Suspended permanently
|
1. June 2007 @ 15:54 |
Link to this message
|
|
I don't think you should use the crosswire trick, it's too risky. Just use Slax to get your 360 in modeB, that simple.
|
|
Advertisement
|
|
|
|
pitbug
Suspended due to non-functional email address
|
4. August 2007 @ 14:01 |
Link to this message
|
I have the xeno connectivity kit which is more-or-less the same as the team xecutor kit and I did not have a clue what cables went where until I saw the picture of theridges molex power supply from his pc to the xecutor kit (thank you for a clear and very helpful picture)
I am wanting to upadate my firmware to the latest for the hitachi v47dj drive so my questions go to the man who know's...theridges if you don't mind helping ? or anyone please
1.when you want to get the 360 drive into mode b would I 1st power on my pc then hit the power button on the connectivity kit and then hit the mode b button ?
2. once led shows the right colour for being set into mode b do I then power down my connectivity kit first or my pc ?
3. once I have run the flashing bat files and flashed the drive how do I get it out of mode b ?
would theridges or anyone please help - thanks for all your time and efforts
|
