Wiikey switch installation guide?
  Jump to:

Posted Message
BGSS
Newbie
_ 		9. March 2008 @ 15:43 _ Link to this message    Send private message to this user
Hey I'm looking for a guide for installing a disabling switch for the wiikey. I read somewhere that installing a disable switch allows the retail SSMB to be played on a wiikey system. Unfortunately, I can't find a guide anywhere on how to do this.

I checked the "Wii Firmware Updates, Wii and WiiKey Resources" thread. The last post on the first page of the thread says the op added a link to such a tutorial, but I couldn't find it. Maybe I'm just blind?

Anyway, can anyone add some insight to this?
[ + quote]

This message has been edited since posting. Last time this message was edited on 9. March 2008 @ 15:45
warfish
Newbie
_ 		9. March 2008 @ 18:11 _ Link to this message    Send private message to this user
I guess you could wire up a switch which disconnected the vcc line when switched. That should provide the desired effect.

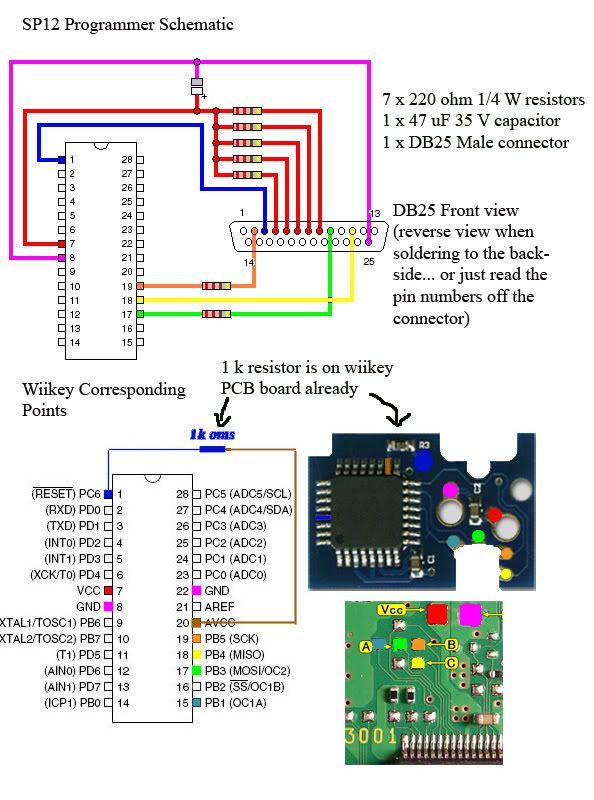

The vcc connection is the hole-through connection farthest from the chip on the wii-key. You can see the full pin-out in this picture here:
http://i216.photobucket.com/albums/cc119...ammerPinout.jpg

My biggest concern would be providing access to said switch without defacing the beautiful aesthetics of the wii.
[ + quote]
docmario9
Newbie
_ 		13. March 2008 @ 16:27 _ Link to this message    Send private message to this user
Hi my wiikey is installed usin four wires and two solder poionts. The two holes are filled with solder and connected directly to the board (it seems). I am pretty good with wiring and know exactly where I can put a switch on the wii without really defacing it.

Is there any way for moe to put a switch on it?

Any help would really be appreciated

thank you
[ + quote]
Advertisement
_ 		__

_
binkie7
Moderator
_ 		13. March 2008 @ 21:03 _ Link to this message    Send private message to this user
[ + quote]
