Samsung ms25 to BenQ help. Wont write spoofed firmware (iXtreme)
  Jump to:

Posted Message
WooZy
Inactive
_ 		24. June 2009 @ 22:34 _ Link to this message    Send private message to this user
Well I got an xbox that had a broken BenQ drive in it and I swapped it with a Toshiba-Samsung ms25. The problem is, I can't write the spoofed firmware to the drive. I may have already but I'm not too sure. If anyone knows what I am doing wrong can you please walk me through a step-by-step on how to get this working. I tried playing games on it but it reads that game and it says "Play DVD"

Something else I noticed is that when I load up the Samsung ix16.bin it loads up as ms28 while my drive is ms25. Does this problem have anything to do with that?

Here are some pics and the JungleFlasher Logs:

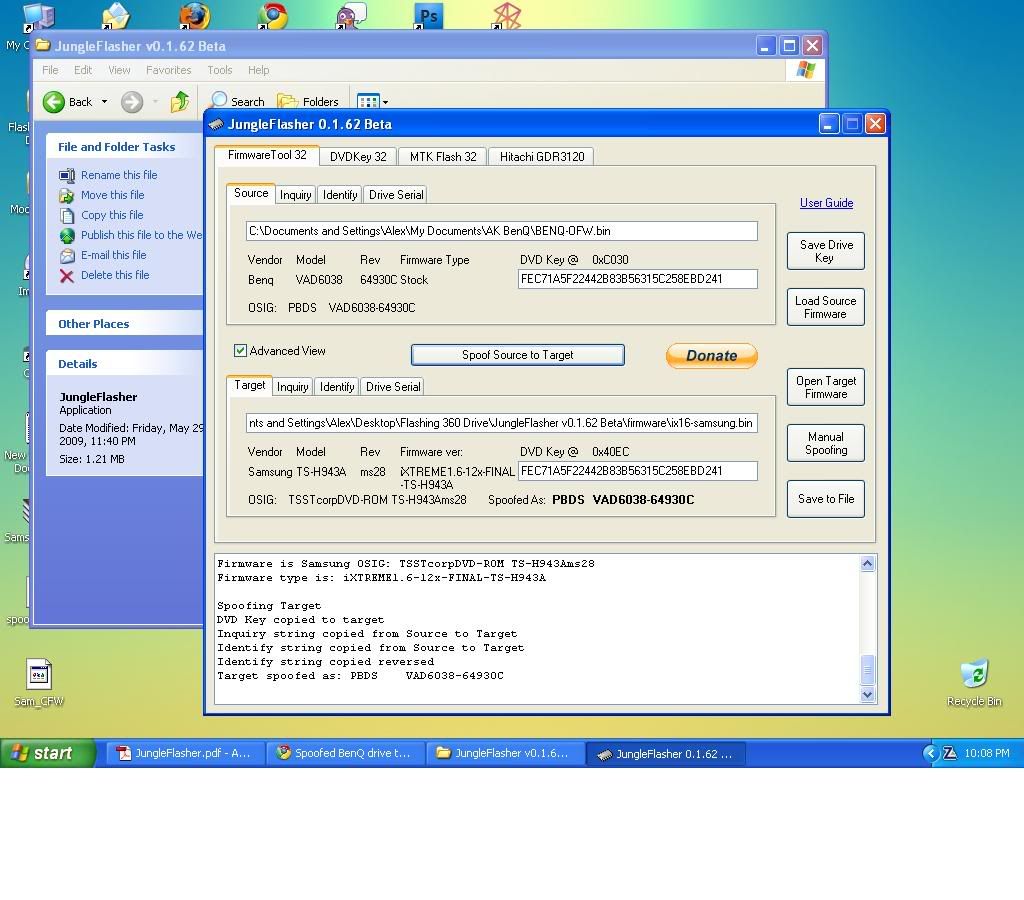

Spoof!

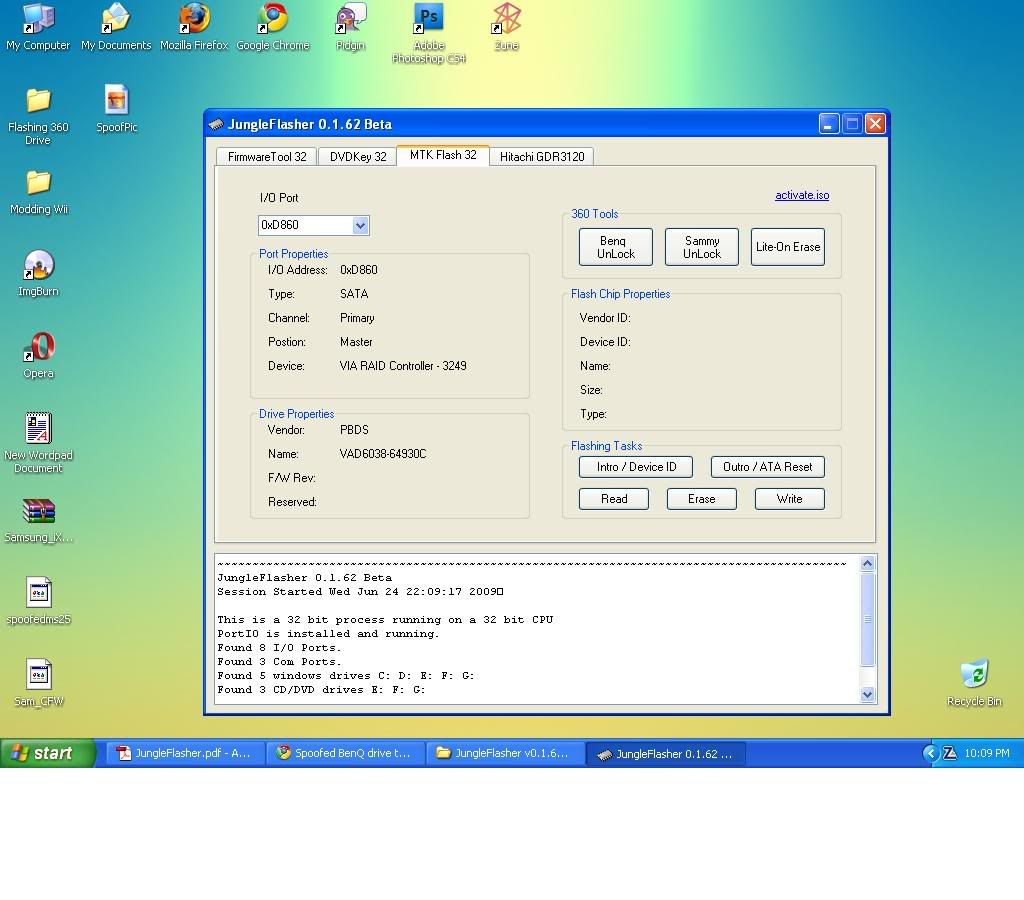

Is it already spoofed?

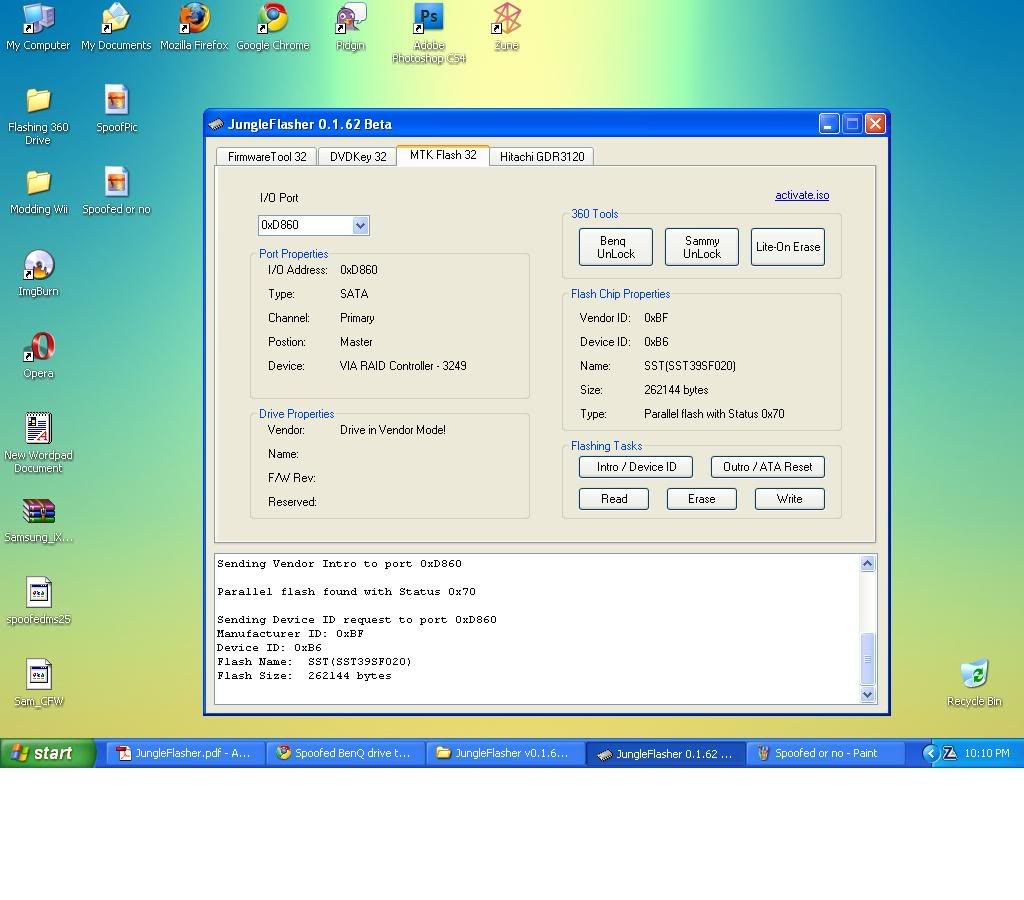

Vendor Mode.

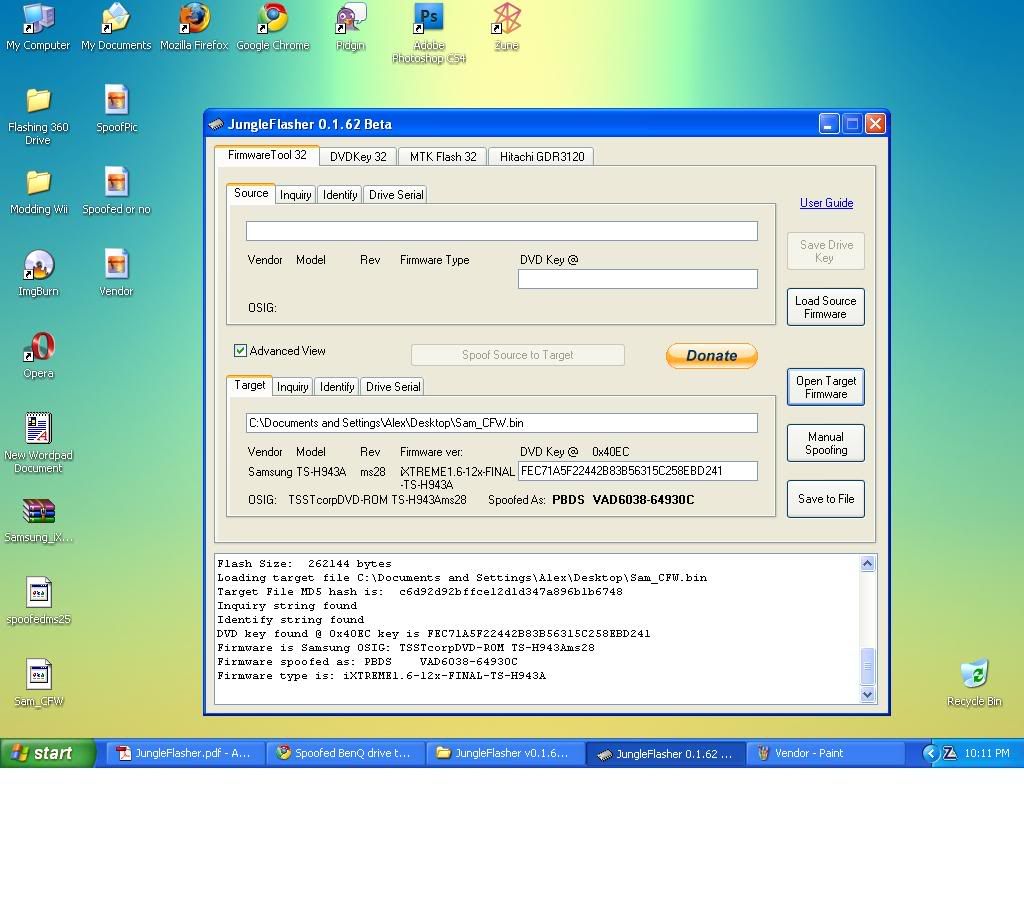

Custom Firmware!

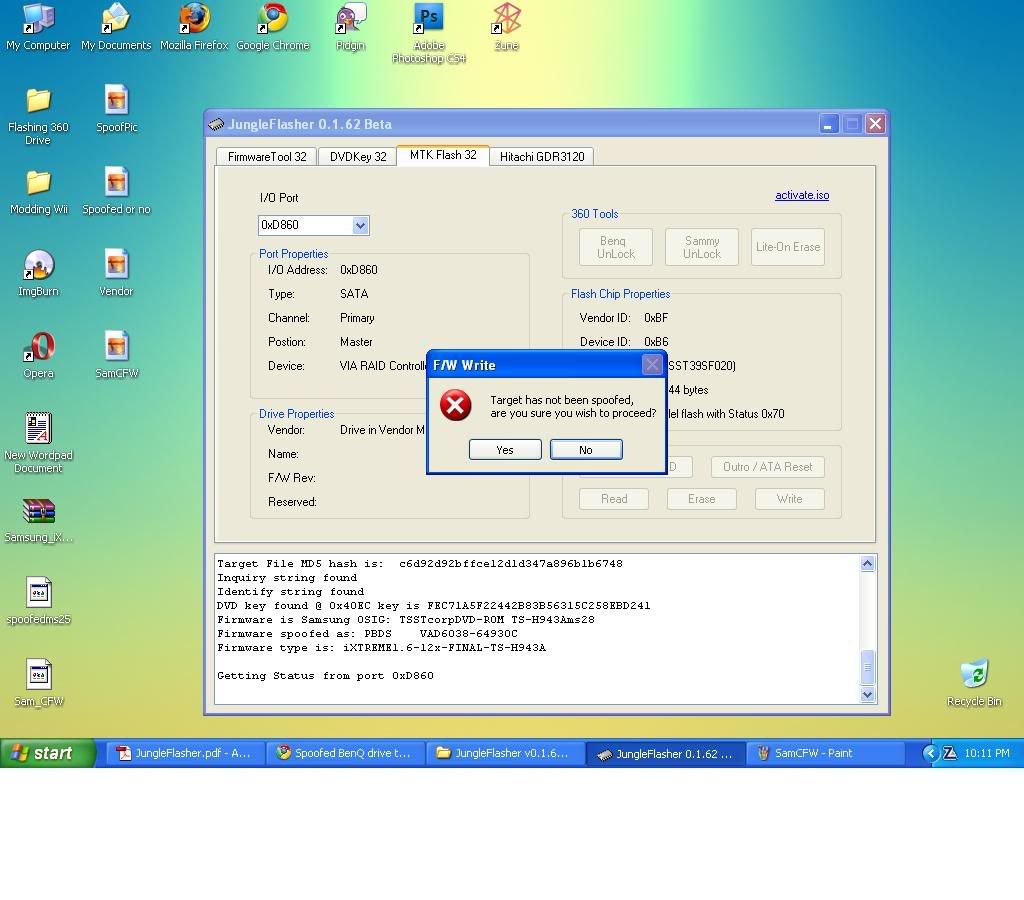

Target not spoofed?

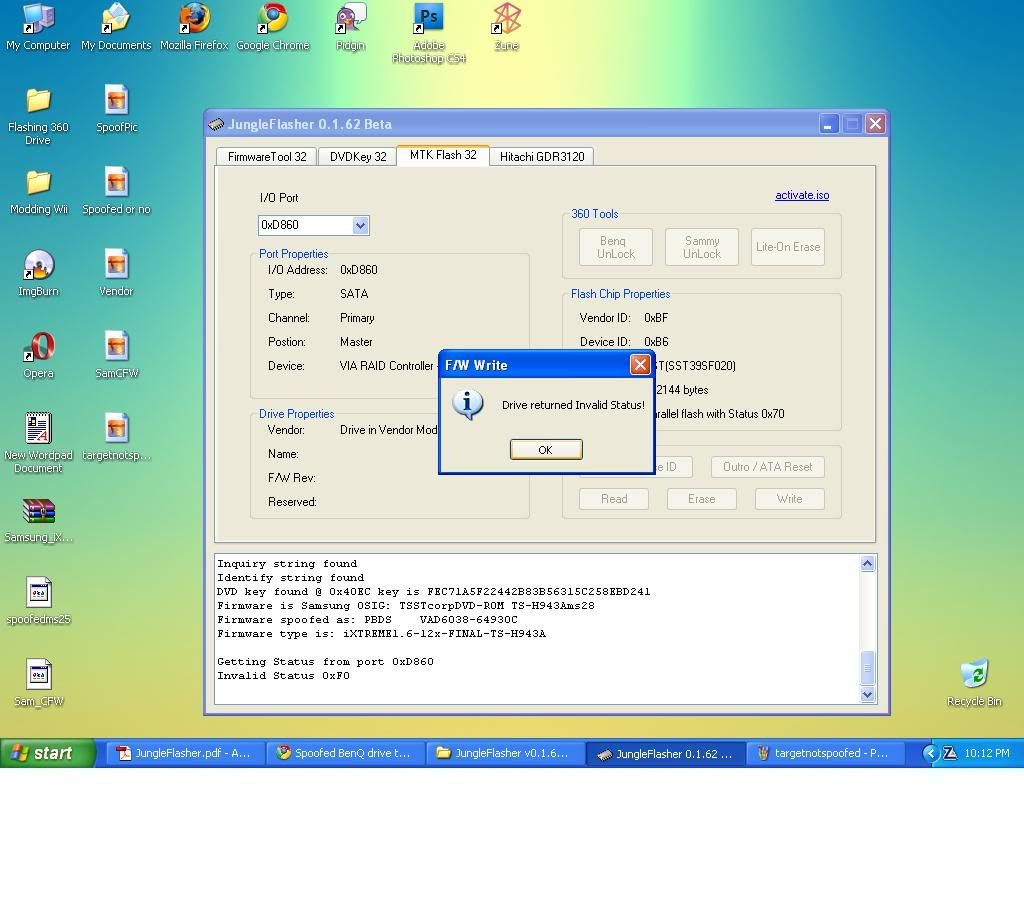

Invalid Write?



Spoof Log:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

JungleFlasher 0.1.62 Beta

Session Started Wed Jun 24 22:13:25 2009





This is a 32 bit process running on a 32 bit CPU

PortIO is installed and running.

Found 8 I/O Ports.

Found 3 Com Ports.

Found 4 windows drives C: D: E: F:

Found 2 CD/DVD drives E: F:





Loading Source File C:\Documents and Settings\Alex\My Documents\AK BenQ\BENQ-OFW.bin

Inquiry string found

Identify string found

DVD key found @ 0xC030 key is FEC71A5F22442B83B56315C258EBD241

Firmware is Benq OSIG: PBDS    VAD6038-64930C

Firmware type is: Stock



Loading target file C:\Documents and Settings\Alex\Desktop\Flashing 360 Drive\JungleFlasher v0.1.62 Beta\firmware\ix16-samsung.bin

Target File MD5 hash is:  23f5a368839dfc10dabb8231ba64567a

Genuine Samsung iXtreme 1.6

Inquiry string found

Identify string found

DVD key found @ 0x40EC key is 77777777777777777777777777777777

Firmware is Samsung OSIG: TSSTcorpDVD-ROM TS-H943Ams28

Firmware type is: iXTREME1.6-12x-FINAL-TS-H943A



Spoofing Target

DVD Key copied to target

Inquiry string copied from Source to Target

Identify string copied from Source to Target

Identify string copied reversed

Target spoofed as: PBDS    VAD6038-64930C
Write Log:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

JungleFlasher 0.1.62 Beta

Session Started Wed Jun 24 22:17:05 2009





This is a 32 bit process running on a 32 bit CPU

PortIO is installed and running.

Found 8 I/O Ports.

Found 3 Com Ports.

Found 5 windows drives C: D: E: F: G:

Found 3 CD/DVD drives E: F: G:



Sending Vendor Intro to port 0xD860



Parallel flash found with Status 0x70



Sending Device ID request to port 0xD860

Manufacturer ID: 0xBF

Device ID: 0xB6

Flash Name:  SST(SST39SF020)

Flash Size:  262144 bytes

Loading target file C:\Documents and Settings\Alex\Desktop\Sam_CFW.bin

Target File MD5 hash is:  c6d92d92bffce12d1d347a896b1b6748

Inquiry string found

Identify string found

DVD key found @ 0x40EC key is FEC71A5F22442B83B56315C258EBD241

Firmware is Samsung OSIG: TSSTcorpDVD-ROM TS-H943Ams28

Firmware spoofed as: PBDS    VAD6038-64930C

Firmware type is: iXTREME1.6-12x-FINAL-TS-H943A



Getting Status from port 0xD860

Invalid Status 0xF0
[ + quote]
Advertisement
_ 		__
leerage
AfterDawn Addict

2 product reviews
_ 		24. June 2009 @ 22:56 _ Link to this message    Send private message to this user
Yes your Samsung is spoofed as a BenQ. In your second picture drive properties say PBDS-VAD6038 which is what it is suppose to say. In your 3rd pic your flash chip is a SST and status is 0x70 which is Samsung.

Not for sure exactly why you are getting an invalid status but the drive looks properly spoofed. Is it not working in the XBOX 360?
[ + quote]
Jungle Flasher Tutorial | Jungle Flasher Troubleshooting Guide | Latest JF version: 0.1.75 | <-- All credit goes to Team Jungle/HyperX.
360 Drives and Motherboard Identification | Make a Bootable USB Drive | JF walk-through for <BenQ> <Samsung> <All LiteOns>
WooZy
Inactive
_ 		24. June 2009 @ 23:06 _ Link to this message    Send private message to this user
Its working but when I try to play a game(be it regular or backup) it says "Play DVD"
[ + quote]
leerage
AfterDawn Addict

2 product reviews
_ 		24. June 2009 @ 23:44 _ Link to this message    Send private message to this user
Just to confirm this is the DVD key from your original BenQ drive:
FEC71A5F22442B83B56315C258EBD241
Normally the "Play DVD" error is when the DVD key doesn't match or you are trying to play a Wave 3 game on firmware lower than ix1.51.
[ + quote]
Jungle Flasher Tutorial | Jungle Flasher Troubleshooting Guide | Latest JF version: 0.1.75 | <-- All credit goes to Team Jungle/HyperX.
360 Drives and Motherboard Identification | Make a Bootable USB Drive | JF walk-through for <BenQ> <Samsung> <All LiteOns>
WooZy
Inactive
_ 		25. June 2009 @ 00:04 _ Link to this message    Send private message to this user
Originally posted by leerage:
 Just to confirm this is the DVD key from your original BenQ drive:
FEC71A5F22442B83B56315C258EBD241
Normally the "Play DVD" error is when the DVD key doesn't match or you are trying to play a Wave 3 game on firmware lower than ix1.51.
Just rechecked and yup thats the key.
[ + quote]
leerage
AfterDawn Addict

2 product reviews
_ 		25. June 2009 @ 00:05 _ Link to this message    Send private message to this user
The part that gets me is that it is not reading originals. Has there ever been an issue with this Samsung drive you are using?
[ + quote]
Jungle Flasher Tutorial | Jungle Flasher Troubleshooting Guide | Latest JF version: 0.1.75 | <-- All credit goes to Team Jungle/HyperX.
360 Drives and Motherboard Identification | Make a Bootable USB Drive | JF walk-through for <BenQ> <Samsung> <All LiteOns>
WooZy
Inactive
_ 		25. June 2009 @ 09:51 _ Link to this message    Send private message to this user
Originally posted by leerage:
 The part that gets me is that it is not reading originals. Has there ever been an issue with this Samsung drive you are using?
No there was never a problem.

Is there a way I can flash back to original firmware and start over? I still have the original .bin I just don't know how to do it.
[ + quote]
leerage
AfterDawn Addict

2 product reviews
_ 		25. June 2009 @ 11:01 _ Link to this message    Send private message to this user
You could try flashing the Samsung firmware back and then back to spoofed ix1.6. Load the original Samsung bin into the target and go over to MTKflash. Get the drive in vendor mode and write.
[ + quote]
Jungle Flasher Tutorial | Jungle Flasher Troubleshooting Guide | Latest JF version: 0.1.75 | <-- All credit goes to Team Jungle/HyperX.
360 Drives and Motherboard Identification | Make a Bootable USB Drive | JF walk-through for <BenQ> <Samsung> <All LiteOns>
WooZy
Inactive
_ 		25. June 2009 @ 12:27 _ Link to this message    Send private message to this user
Tried write original firmware back on it and this is the result. My patients are running dry.

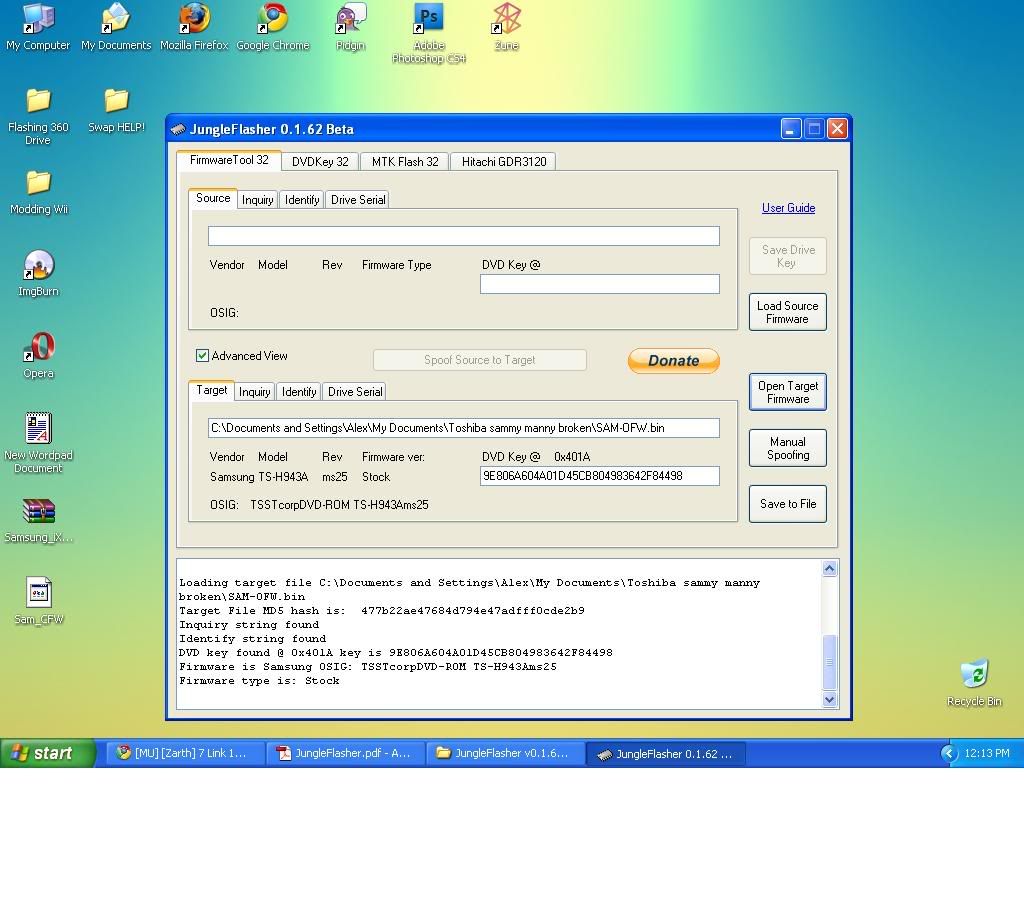

Original Firmware


Vendor Mode

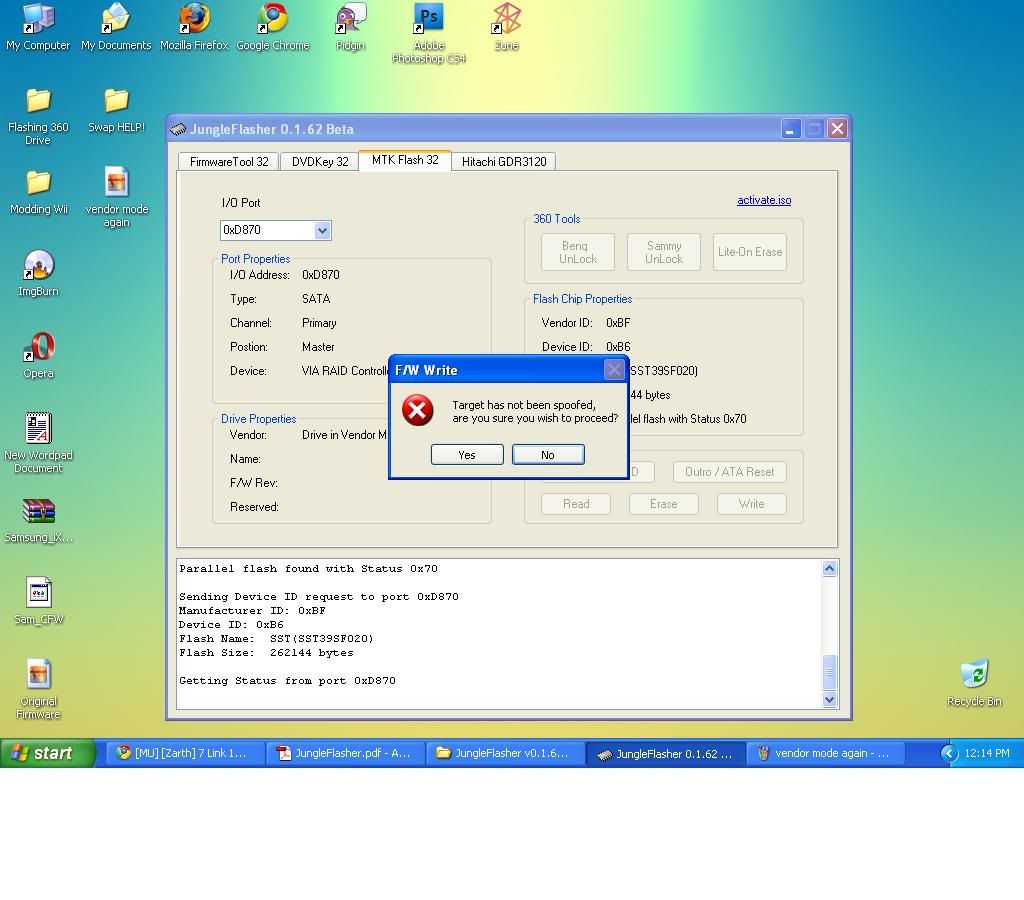

Yes

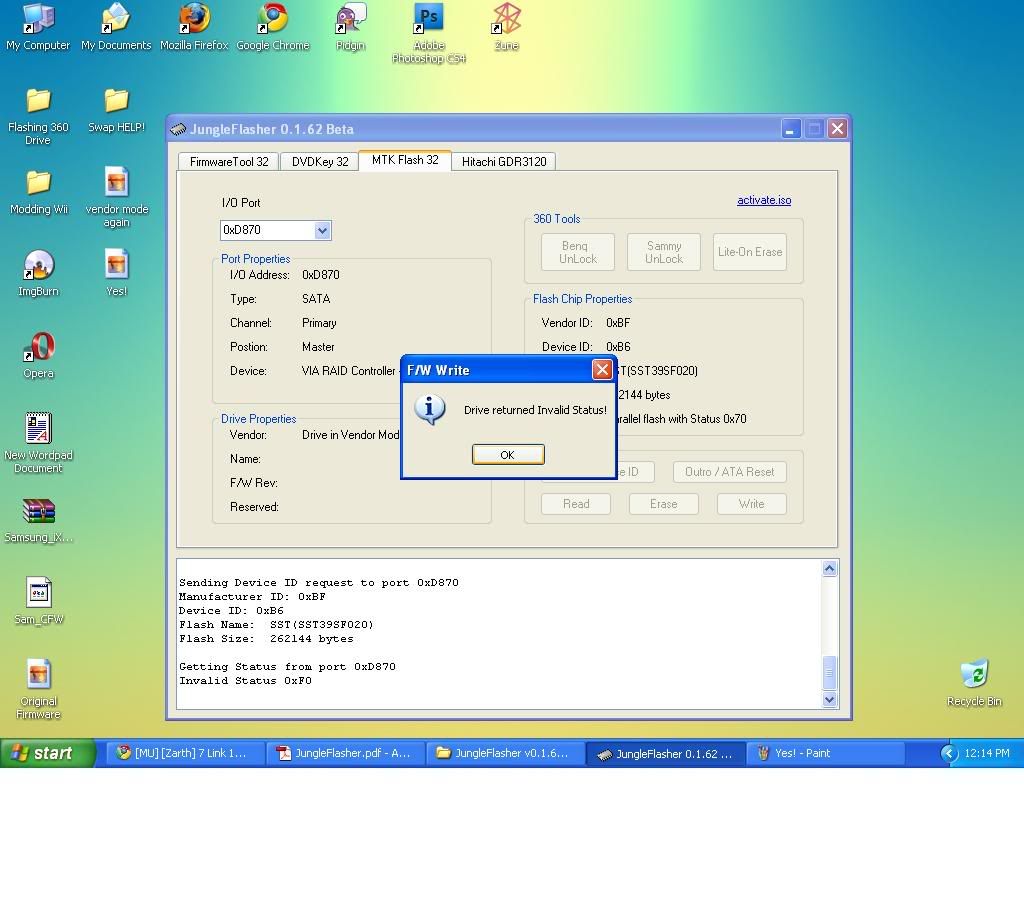

Invalid Status again???????????WTF!POS!BS!MF!****YOU!

[ + quote]
WooZy
Inactive
_ 		25. June 2009 @ 15:11 _ Link to this message    Send private message to this user
Resolved!

There was something going wrong with JungleFlasher.

I made a bootable USB drive with iPrep and put my Original Samsung firmware in it and flashed through DOS.

After that JungleFlasher realized it as an ms25 and I wrote the Spoofed firmware and it finally worked.

So basically I had to reset the drives firmware back to regular in iPrep and flash the spoof through jungleflasher again.
[ + quote]
Advertisement
_ 		__

_
leerage
AfterDawn Addict

2 product reviews
_ 		25. June 2009 @ 15:44 _ Link to this message    Send private message to this user
Glad you got it resolved. When all else fails, boot to do DOS.
