sttranger
Newbie
_ 		13. October 2009 @ 18:09 _ Link to this message    Send private message to this user
can i do this with a 40w soldering iron?what kind of solder should i use?
[ + quote]
Advertisement
_ 		__
sttranger
Newbie
_ 		13. October 2009 @ 18:18 _ Link to this message    Send private message to this user
sorry for the second reply, can i use 0.5watts resistors?i got transistor BC546B, should work right?
[ + quote]
Rang3r_Ri
Member
_ 		2. November 2009 @ 01:22 _ Link to this message    Send private message to this user
going to ak a really dumb Q:
i have the CK3 pro and had the probe until it died this evening, if i am using a molex connector from pc(5v supply)to power the CK3.can i splice into the molex adapter for power supply(aligator clip) and can i just plug the com port into the CK3 pro instead of pc.?

or could you recommend something else.
thanX, and sorry for jumping like that..
[ + quote]
mj1henry
Junior Member
_ 		5. November 2009 @ 11:56 _ Link to this message    Send private message to this user
I am having a lot of trouble with my probe.

I am using a Serial to USB adapter and I keep getting the Bad Serial Data error.

I have checked my hardware using Hyperterminal and i get nothing although everything is setup correctly. I am getting power from a USB cable, however, once as the USB Cable has been plugged in, the com port cannot be opened. Any ideas?
[ + quote]
JailBound
Junior Member
_ 		24. January 2010 @ 16:04 _ Link to this message    Send private message to this user
Hi there small problem
i built the probe and all that but when i load up windows with it plugged in windows freezes
any ideas?
and sorry if its already been talked about
i dont feel like reading 6 or 7 pages haha
[ + quote]
jerecho
Senior Member
_ 		26. December 2011 @ 15:31 _ Link to this message    Send private message to this user
Can I use single strands from Cat-5e wire instead of the earbuds wire. I don't think i have any extra headphones lying around
[ + quote]
eebeejay
AfterDawn Addict
_ 		26. December 2011 @ 15:56 _ Link to this message    Send private message to this user
Originally posted by jerecho:
 Can I use single strands from Cat-5e wire instead of the earbuds wire. I don't think i have any extra headphones lying around
Yes but I don't think you wanna build this probe (it's out of date).

Build this one instead:



It's the same thing as Xecuter's Probe 3.
Step 1: Just put a needle/safety pin/paper clip/etc on wire #5.
Step 2: Cut wire #6 and add a switch to it.
Step 3: Use any connectivity kit and start flashing. Use Jungle Flasher's Probe 3 section of the tutorial.
----------------> The LED is optional.

Here are a few examples example of one:
http://arkdesigns.ca/images/pmt.jpg

http://i51.tinypic.com/2lrgip.jpg

http://img269.imageshack.us/img269/6222/dsc05049tc.jpg

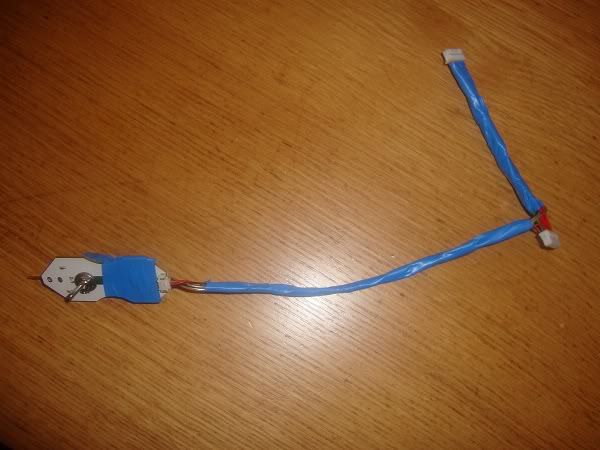

http://i1124.photobucket.com/albums/l566/dragontm/DSC01496.jpg

http://imageshack.us/photo/my-images/156/probev3hm.jpg/
[ + quote]

This message has been edited since posting. Last time this message was edited on 26. December 2011 @ 15:59
jerecho
Senior Member
_ 		26. December 2011 @ 18:18 _ Link to this message    Send private message to this user
how many volts should I be getting at the probe?

I just got done building it from the original post directions.

I'm getting -2.5 volts at the probe
[ + quote]

This message has been edited since posting. Last time this message was edited on 26. December 2011 @ 18:23
Advertisement
_ 		__

_
jerecho
Senior Member
_ 		26. December 2011 @ 20:42 _ Link to this message    Send private message to this user
This is what I have done.

I have a 10 ohm resistor soldered to the base pin of the transistor. from the other side of the resistor it goes to the probe.
then I have the emitter soldered to pin 5 of the d-sub connector
the collector pin is soldered to pin 2 of the d-sub connector
I have a 1 ohm resistor also soldered to the 2 pin of the d-sub connector
after the 1 ohm resistor is my 5 volt power wire

does this sound correct?






[ + quote]
